Model: KXZ-100B
Place of origin: China
Model: KXZ-100B
Place of origin: China
●Speed:30-100box/min
●Box Thickness range: 250-350g/m2 (according to its size to confirm)
●Box Size Range:Length:70-220mm
Width:14-90mm
Height:14-65mm
(can do custom designed)
●Working pressure:≧0.6mpa
●Air consumption: 120-160L/min
●Power supply:220V 50Hz
●Motor Power:1.5KW
●Machine dimension (L×w×H):3100×1100×1900mm
●Machine weight: Appro 1500KGS
● Touch Screen HMI controls
● PLC programme
● Japan Omron electric parts (inverter, PLC,touch screen...)
● Germany sick photocell
● Vacuum assisted pre-break
● various size are avaliable in machine within machine size range
● without product, carton will be not sucked down
● Auto display trouble, alarm and count finished product
● Overload protection
●Bottle feeder/Blister feeder (double function)
● auto conveyor
(connect our machine with your present machine to be whole automatic line)
● hot melt glue (can be american nordson, dynatec, spain meler, switzerland robatech)
●other brand like simens (inverter, PLC, touch screen)
● Print batch number or date on carton box

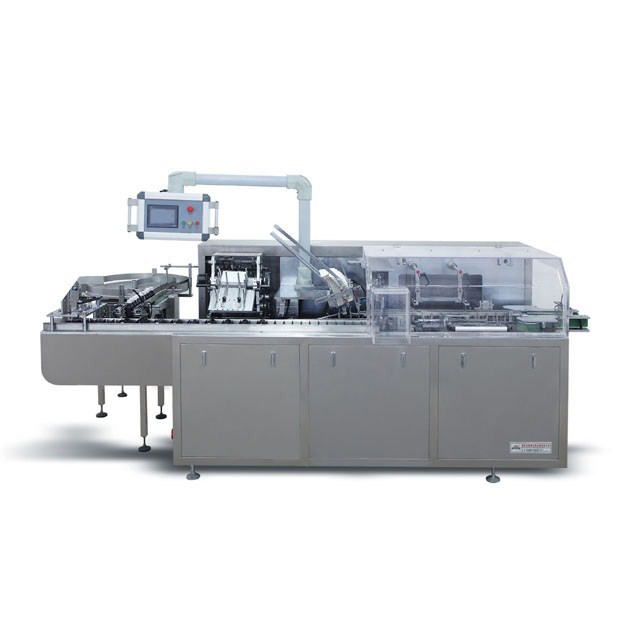

KXZ-100B Automatic Bottle Packaging machine suitable for packing bottle into carton box. Can connect to other machines to be automatic whole line.
The machine is suitable for capsule,tablet,big honey pill,candy,liquid,paste,syringe as well as irregular shape Al-plastic,paper-plastic composite and Al-Al sealing packing in pharmacy,healthcare,food,cosmetics,medical equipment industry etc, fully comply with“GMP”.
KXZ-100B Automatic Blister Cartoning Machine suitable for packing blister or bottle into carton box. Can connect to other machines to be automatic whole line.
