Model: KXZ-100B
Place of origin: China
Model: KXZ-100B
Place of origin: China
●Speed:30-100box/min
●Box Thickness range: 250-350g/m2 (according to its size to confirm)
●Box Size Range:Length:70-220mm
Width:14-90mm
Height:14-65mm
(can do custom designed)
●Leaflet thickness:60-70g/m2
●unfolded leaflet specification: Length: 80-250mm
Width:90-170mm
●Leaflet fold range: (1-4) fold
●Working pressure:≧0.6mpa
●Air consumption: 120-160L/min
●Power supply:220V 50Hz
●Motor Power:1.5KW
●Machine dimension (L×w×H):3100×1100×1900mm
●Machine weight: Appro 1500KGS
● Touch Screen HMI controls
● PLC programme
● Japan Omron electric parts (inverter, PLC,touch screen...)
● Germany sick photocell
● Vacuum assisted pre-break
● various size are avaliable in machine within machine size range
● without product, carton will be not sucked down
● Auto display trouble, alarm and count finished product
● Overload protection
●Bottle feeder/Blister feeder (double function)
● auto conveyor
(connect our machine with your present machine to be whole automatic line)
● hot melt glue (can be american nordson, dynatec, spain meler, switzerland robatech)
●other brand like simens (inverter, PLC, touch screen)
● Print batch number or date on carton box
The machine is suitable for capsule,tablet,big honey pill,candy,liquid,paste,syringe as well as irregular shape Al-plastic,paper-plastic composite and Al-Al sealing packing in pharmacy,healthcare,food,cosmetics,medical equipment industry etc, fully comply with“GMP”.

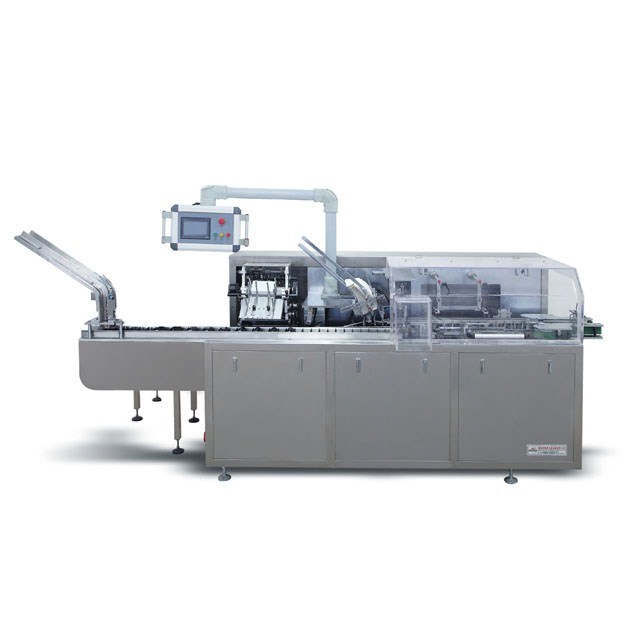

KXZ-100B Automatic Blister Cartoning Machine suitable for packing blister or bottle into carton box. Can connect to other machines to be automatic whole line.
KXZ-100B Automatic Bottle Packaging machine suitable for packing bottle into carton box. Can connect to other machines to be automatic whole line.
