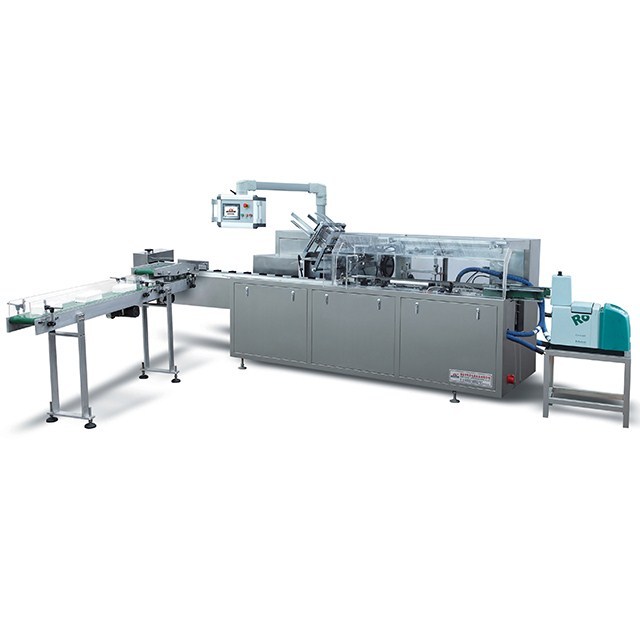

KXZ-130B Automatic Paper Tissue Carton Box Packaging Machine

KXZ-130B automatic paper tissue carton box packaging machine suitable for packing all kinds of product into carton box. Also can pack facial tissue. Can connect to other machines to be whole line.

Specification

Model: KXZ-130B

Place of origin: China

Technical specifications

●Speed:40-80box/min

●Box Thickness range: 250-450g/m2 (according to its size to confirm)

●Box Size Range:Length:90-260mm

Width:70-120mm

Height:30-90mm

(can do custom designed)

Compressed air

●Working pressure:≧0.6mpa

●Air consumption: 20m3/h

●Power supply:380V 50Hz

●Motor Power:1.5KW

●Machine dimension (L×w×H):3500×1350×1900mm

●Machine weight: Appro 1500KGS

Standard features

● Touch Screen HMI controls

● PLC programme

● Japan Omron electric parts (inverter, PLC,touch screen)

● Germany sick photocell

● Spain meler hot melt glue

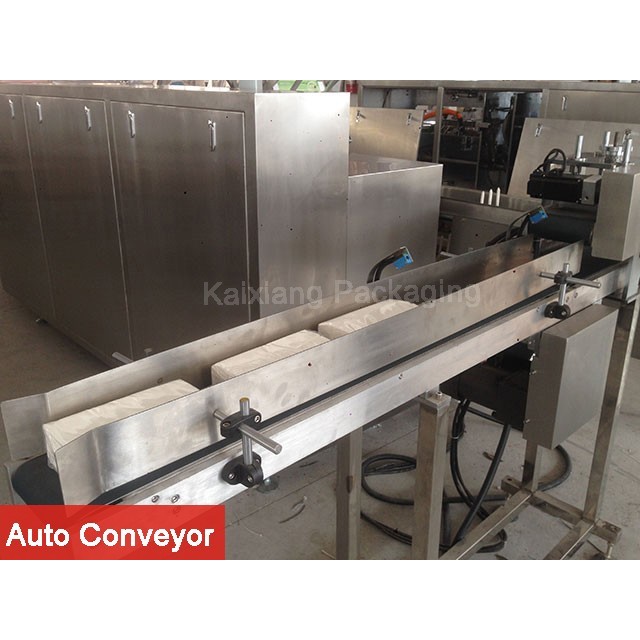

● auto conveyor

● Vacuum assisted pre-break

● various size are available in machine within machine size range

(connect our machine with your present machine to be whole automatic line)

● without product, carton will be not sucked down

● Auto display trouble, alarm and count finished product

● Overload protection

● Double suck system, more steady

Optional features

● hot melt glue (can be american nordson, dynatec, spain meler, switzerland robatech)

●other brand like simens (inverter, PLC, touch screen)

● Print batch number or date on carton box

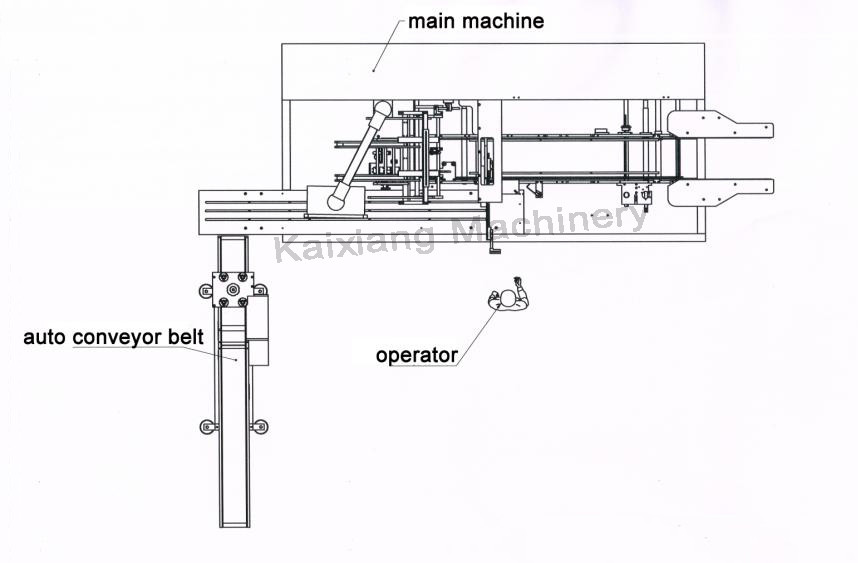

Machine Simple Drawing:
