Model: KXZ-100B, KXZ-130B
Place of origin: China
Model: KXZ-100B, KXZ-130B
Place of origin: China
●Speed:30-100box/min
●Box Thickness range: 250-350g/m2 (according to its size to confirm)
●Box Size Range:Length:55-200mm
Width:14-90mm
Height:13-65mm
(can do custom designed)
●Working pressure:≧0.6mpa
●Air consumption: 20m3/h
●Power supply:380V 50Hz
●Motor Power:1.5KW
●Machine dimension (L×w×H):3100×1100×1900mm
●Machine weight: Appro 1500KGS
● Touch Screen HMI controls
● PLC programme
● Japan Omron electric parts (inverter, PLC,touch screen)
● Germany sick photocell

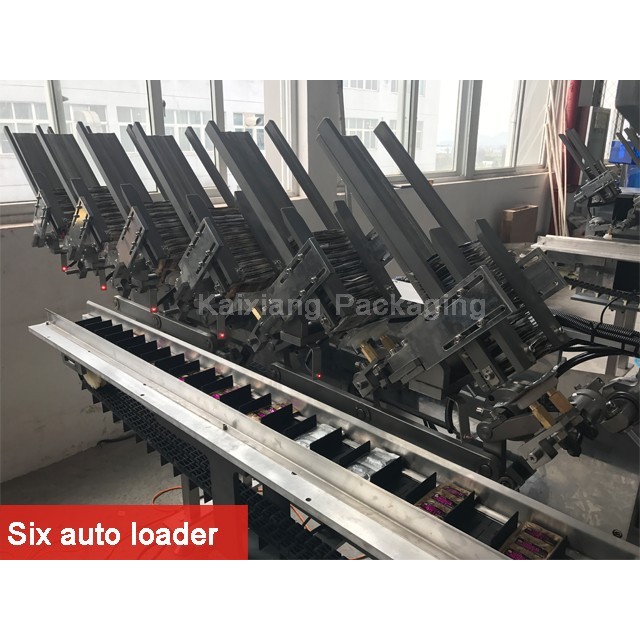

●Multi feeder
● Vacuum assisted pre-break
● various size are avaliable in machine within machine size range
● without product, carton will be not sucked down
● Auto display trouble, alarm and count finished product
● Overload protection
● More feeder for product
● hot melt glue (can be american nordson, dynatec, spain meler, switzerland robatech)
●other brand like simens (inverter, PLC, touch screen)
● Print batch number or date on carton box
KXZ-100B automatic small box cartoning machine suitable for packing all kinds of product into carton box. Can connect to other machines to be automatic whole line.
KXZ-100B Automatic Condom Cartoning Machine suitable for packing all kinds of product into carton box. Also can pack facial mask, sachet, fever cooling patch. Can connect to other machines to be whole line.
KXZ-160C high speed Cartoning Machine for packing all kinds of product into carton box in high speed. Can linked with other machines to be automatic whole line.
KXZ-450C automatic cling film/aluminum film cartoning machine suitable for packing all kinds of product into carton box. Mainly for cling film, aluminum film. Can connect to other machines to be automatic whole line.
