KXZ-450C Automatic Cling Film/Aluminum Film Cartoning Machine

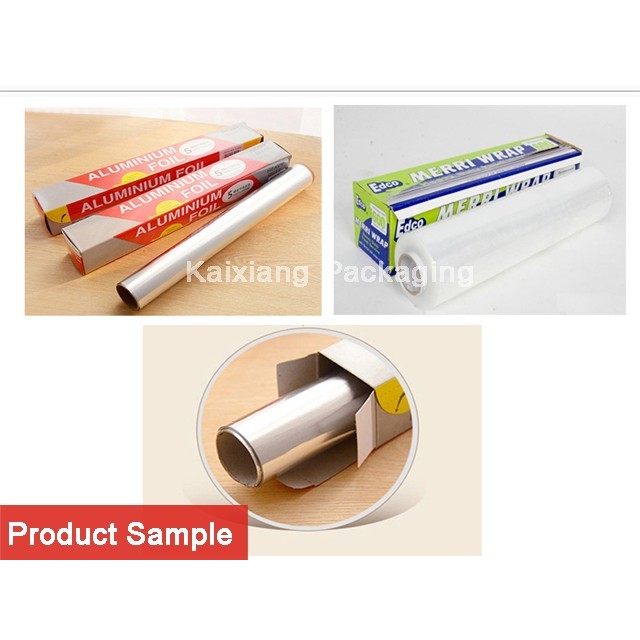

KXZ-450C automatic cling film/aluminum film cartoning machine suitable for packing all kinds of product into carton box. Mainly for cling film, aluminum film. Can connect to other machines to be automatic whole line.

Specification

Model: KXZ-450C

Place of origin: China

Technical specifications

●Speed:30-80box/min

●Box Thickness range: 250-350g/m2 (according to its size to confirm)

●Box Size Range:Length:100-450mm

Width:20-80mm

Height:20-90mm

(can do custom designed)

Compressed air

●Working pressure:≧0.6mpa

●Air consumption: 20m3/h

●Power supply:380V 50Hz

●Motor Power:1.5KW

●Machine dimension (L×w×H):3500×1700×1700mm

●Machine weight: Appro 1500KGS

Standard features

● Touch Screen HMI controls

● PLC programme

● JAPAN OMRON electric parts (inverter, PLC,touch screen)

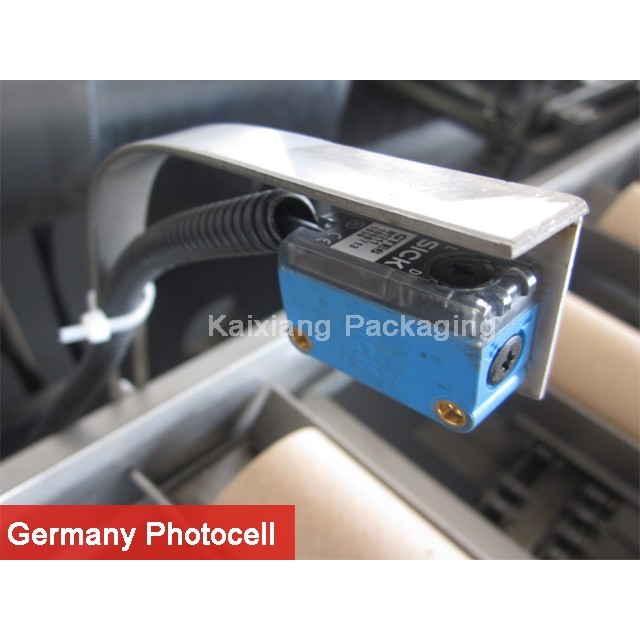

● GERMANY SICK photocell

● SPAIN MELER hot melt glue

● Vacuum assisted pre-break

● various size are avaliable in machine within machine size range

● without product, carton will be not sucked down

● Auto display trouble, alarm and count finished product

● Overload protection

Optional features

● auto conveyor

(connect our machine with your present machine to be whole automatic line)

● hot melt glue (can be american nordson, dynatec, spain meler, switzerland robatech)

●other brand like simens (inverter, PLC, touch screen)

● Print batch number or date on carton box
